ERZ101  電気化学分析システム

ERZ101 電気化学分析システム
ERZ101 電気化学分析システム

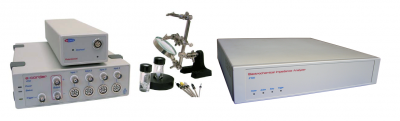

ERZ101 システムは総合的なボルタンメトリとACインピーダンス電気化学測定に必要な装置をパッケージ化したものです。

内訳:

ERZ101 には Z Navigator オペレーションソフトウェアと、パワフルな ZMAN モデリングソフトウェアが付いています。

引用文献

  • Performance of conducting polymer electrodes for stimulating neuroprosthetics. R A Green, P B Matteucci, R T Hassarati, B Giraud, C W D Dodds, S Chen, P J Byrnes-Preston, G J Suaning, L A Poole-Warren and N H Lovell, Journal of Neural Engineering, 10, 016009, 2013.  DOI: 10.1088/1741-2560/10/1/016009
  • Conductive hydrogels with tailored bioactivity for implantable electrode coatings. G.L. Mario Cheong, Khoon S. Lim, Anais Jakubowicz, Penny J. Martens, Laura A. Poole-Warren, Rylie A. Green. Acta Biomaterialia, 10, 1216–1226, 2014. DOI: 10.1016/j.actbio.2013.12.032
  • Carbazole-Dendrimer-Based Donor−π–Acceptor Type Organic Dyes for Dye-Sensitized Solar Cells: Effect of the Size of the Carbazole Dendritic Donor. Pongsathorn Thongkasee, Amonrat Thangthong, Nittaya Janthasing, Taweesak Sudyoadsuk, Supawadee Namuangruk, Tinnagon Keawin, Siriporn Jungsuttiwong, and Vinich Promarak, ACS Applied Materials and Interfaces, 6, 8212–8222, 2014. DOI: 10.1021/am500947k
  • Zinc–Porphyrin Dyes with Different meso-Aryl Substituents for Dye-Sensitized Solar Cells: Experimental and Theoretical Studies. Kanokkorn Sirithip et al. Chemisty An Asian Journal, 2014.  DOI:10.1002/asia.201402766


  • 周波数レンジ: 1 mHz ~ 100 kHz
  • AC アンプリチュード:  1mVp-p ~ 5Vp-p に設定
  • 周波数分解能: 5000 ステップ/10回
  • 周波数精度: < ±200 ppm、75 ppm 標準
  • レンジ設定 (分解能):
         100 mA   (3.13 µA)          50 mA   (1.56 µA)         20 mA   (625 nA)
         10 mA   (313 nA)             5 mA  (156 nA)             2 mA   (62.5 nA)
         1 mA   (31.3 nA)              500 nA  (15.6 nA)         200 µA   (6.25 nA)
         100 µA   (3.13 nA)           50 µA  (1.56 nA)           20 µA   (625 pA)
         10 µA   (313 pA)              5 µA  (156 pA)              2 µA   (62.5 pA)
         1 µA   (31.3 pA)               500 nA  (15.6 pA)         200 nA   (6.25 pA)
         100 nA   (3.13 pA)           50 nA  (1.56 pA)           20 nA   (625 fA)
  • 入力インピーダンス: 1013 ohms
  • 周波数特性: 100 kHz
